Application / Suitable
| EP Aircraft & 3D Airplane |
Specifications
| Torque At 6.0V | 3.6 kg-cm / 50.0 oz-in |
| Torque At 7.4V | 4.5 kg-cm / 62.5 oz-in |
| Torque At 8.4V | 5.1 kg-cm / 70.8 oz-in |
| Speed At 6.0V | 0.06 sec / 60° |
| Speed At 7.4V | 0.05 sec / 60° |
| Speed At 8.4V | 0.04 sec / 60° |
Power Supply
| Operating Voltage Range | 4.5V ~ 8.7V DC ( 2S HV Li-Poly / 2S Li-Fe Compatible ) |
Control Specification
| Control System | Digital Controller / AD 12-Bits Resolution ( 4096 Steps ) Frequency：333Hz / Neutral：1500us or 1520us |
| Dead Band Width | 0.001ms ( 1us ) |
Mechanical Specifications
| Ball Bearing | Dual |
| Gear | All Metal Gears ( Option Parts : Stainless Steel Output Shaft ) |
| Motor | High-Efficiency Coreless Motor |
| Horn / Gear Spline | 25 Teeth |
Physical Specifications
| Dimension (mm) | 23 x 12 x 25.4 mm / 0.9 x 0.47 x 1 in |
| Weight (gram) | 15.2 ± 1 grams / 0.53 oz ( Stainless Steel Output Shaft : 17.1 grams / 0.60 oz ) |

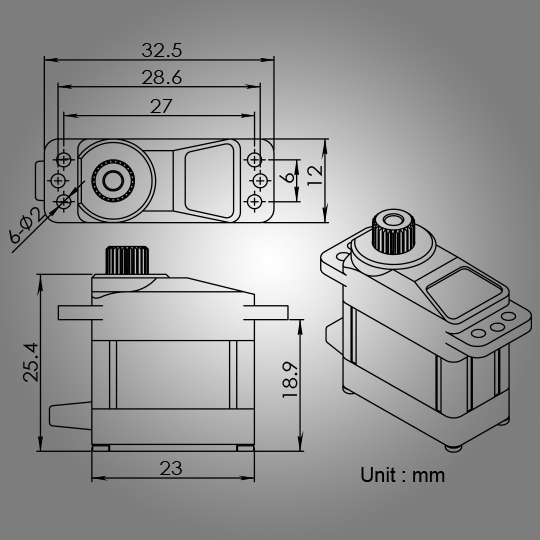

| Product Picture / Dimension Sketch | .png) |
