Application / Suitable
| Priority for Helicopter Tail [Rudder] & Airplane & 1/10th On-Road, Drift Car. (EP / Gas / Nitro) |
Specifications
| Torque At 6.0V | 13.8 kg-cm / 191.7 oz-in |
| Torque At 7.4V | 17.1 kg-cm / 237.5 oz-in |
| Torque At 8.4V | 19.4 kg-cm / 269.5 oz-in |
| Speed At 6.0V | 0.045 sec / 60° |
| Speed At 7.4V | 0.038 sec / 60° |
| Speed At 8.4V | 0.033 sec / 60° |
Protection Mechanism
| Soft Start Protection | Soft start to a neutral position. |
| Over Voltage Protection | Over 9.0V drive the protection mode and 8.4V return to normal mode. |
| Low Voltage Protection | Lower than 4.0V, drive the protection mode and 4.5V return to normal mode. |
| Locked Rotor Protection | Stall in 5 sec, output torque goes down. |
| Temperature Protection | Overheat 85 degrees C (185 degrees F), drive the protection mode and down 75 degrees C (167 degrees F) return to normal mode. |
| Lose Control Protection | When losing the transmitter signal, that servo will be back to the neutral position immediately and lock. |
Power Supply
| Operating Voltage Range | 4.5V ~ 8.5V ( 4 ~ 6 Cell Ni-MH or 2S Li-Poly / 2S Li-Fe) |
Control Specification
| Control System | Digital Controller / AD 12-Bits Resolution ( 4096 Steps ) Frequency：333Hz / Neutral：1500us or 1520us |
| Dead Band Width | 0.001ms ( Default：1us) |
Mechanical Specifications
| Ball Bearing | Dual |
| Gear | All Steel w/ Nanometer Alloy Gears |
| Motor | High Premium Brushless Motor |
| Horn / Gear Spline | 25 Teeth ( Same as F-Type ) |
Physical Specifications
| Dimension (mm) | 40.5 x 20 x 39 mm / 1.59 x 0.79 x 1.54 in |
| Weight (gram) | 76.5 ± 1 grams / 2.70 oz |

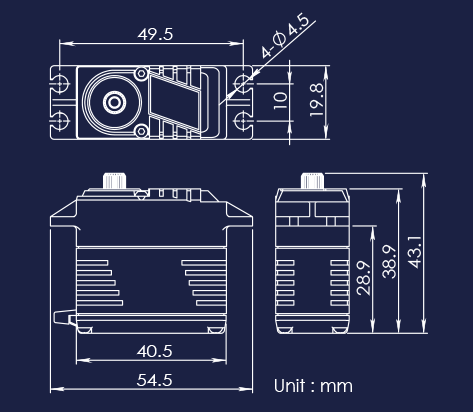

| Product Picture / Dimension Sketch | (2).png) |
