Application
| 1/8 、1/10th On-road Car & Heli 550 Class CCPM cyclic use, Aircraft |
Specifications
| Torque At 6.0V | 24.6 kg-cm / 341.7 oz-in |
| Torque At 7.4V | 28.3 kg-cm / 393.1 oz-in |
| Torque At 8.4V | 30.1 kg-cm / 418.1 oz-in |
| Speed At 6.0V | 0.11 sec / 60° |
| Speed At 7.4V | 0.09 sec / 60° |
| Speed At 8.4V | 0.08 sec / 60° |
Power Supply
| Operating Voltage Range | 4.5V ~ 8.5V ( 4 ~ 6 Cell Ni-MH or 2S Li-Poly ) |
Control Specification
| Control System | Digital Controller / AD 12-Bits Resolution ( 4096 Steps ) Frequency：Up to 333Hz / Neutral：1500us or 1520us |
| Dead Band Width | 0.001ms ( Default：1us) |
Mechanical Specifications
| Ball Bearing | Dual |
| Gear | All Metal Gears |
| Motor | Racing Brushless Motor |
| Horn / Gear Spline | 25 Teeth ( Same as F-Type ) |
Physical Specifications
| Dimension (mm) | 40.8 x 21 x 25.4 mm / 1.60 x 0.83 x 1.0 in |
| Weight (gram) | 50.4 ± 1 grams / 1.78 oz |

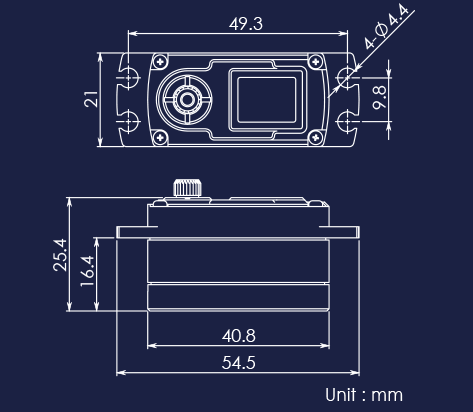

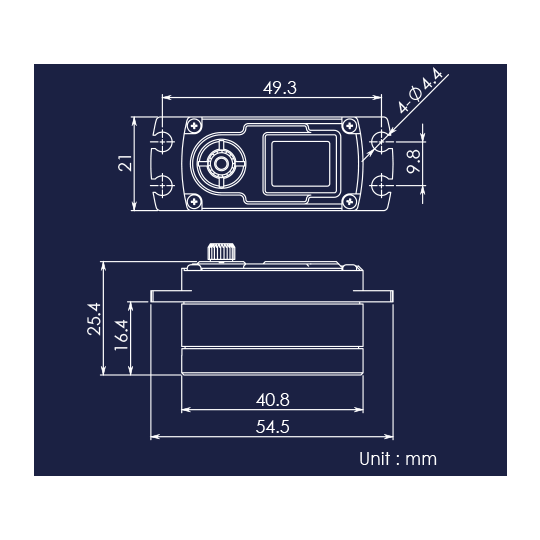

| Product Picture / Dimension Sketch | .png) |
